Swing (R3SWING)

Command: R3SWING

Opens the Swing form for managing the bearing swing in the current drawing. A swing is an angular offset that is automatically applied to all bearings entered in R3TRAV, allowing you to work in a local or rotated bearing system without manually converting every bearing.

See Swings for a conceptual explanation of what a swing is and when to use one.

Opening the form

Type R3SWING, choose Swing from the R3Survey menu, or click the Swing button on the ribbon.

Form sections

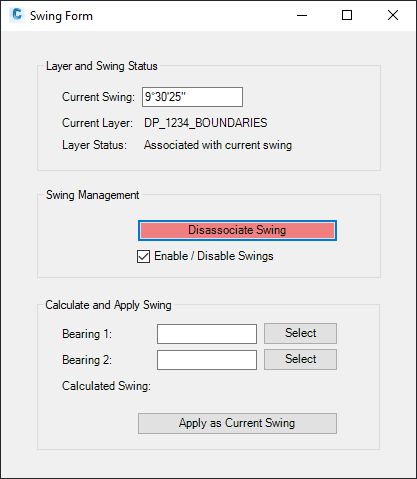

Layer and Swing Status

Displays the current state of the drawing:

Field	Description
Current Swing	The active swing value (e.g. 9° 07' 10")
Current Layer	The active AutoCAD layer
Layer Status	Whether the current swing is associated with the active layer

If a swing is associated with a survey plan layer (for example DP31357_CONNECTIONS), switching to another layer in the same survey plan automatically applies the stored swing for that plan.

Swing Association

Controls whether the active swing is stored against the current layer. The association button changes colour to indicate its state:

Button colour	Meaning
Blue — Associate Swing	Click to associate the current swing with the active survey plan layer(s)
Red — Disassociate Swing	Click to remove the swing association from the active survey plan layer(s)
Orange — Update Association	Click to replace the swing already stored against the layer with the current swing value

If the layers were created using R3PL, the association applies to all layers in that survey plan. Otherwise it applies to the current layer only.

Enable / Disable swings

A checkbox controls whether the active swing is applied:

• Checked — swings are applied to bearing entry and display
• Unchecked — the swing value is preserved but not applied

When disabled, R3TRAV does not adjust entered bearings, and R3PROPERTIES shows WCS bearings without swing correction. This is equivalent to the R3TOGGLESWINGS command.

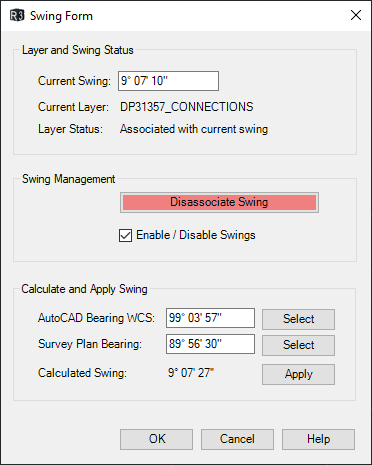

Calculate and Apply Swing

Calculates a swing from two known bearings:

Field	Description
AutoCAD Bearing (WCS)	The bearing measured from drawing geometry. Use Select to pick a line or segment
Survey Plan Bearing	The bearing as shown on the survey plan (entered manually)
Calculated Swing	Automatically calculated as: WCS bearing − Survey Plan bearing
Apply	Sets the calculated swing as the current swing

Angle display and input format

The display format for swing values is controlled by the Angle Display Format in R3UNITS:

Format	Example
Decimal	9.0710
Compact	9°07'10"
Spaced	9° 07' 10"

Entering swing values

Regardless of the display format selected, all manual input in Swing form text boxes must be in decimal DMS format.

Enter 9.0710, not 9°07'10". The value is converted and displayed in the selected format after entry.

Swing persistence

The active swing is stored in the drawing's extended data (XData) and persists between sessions. When you open a drawing, its stored swing is loaded automatically.

Command-line access

The following commands provide direct command-line access to swing functions without opening the Swing form:

Command	Function
R3SWING	Opens the Swing form
R3ENTERSWING	Enter a swing value directly at the command line
R3TOGGLESWINGS	Toggle swings enabled/disabled
R3ASSOCIATESWING	Associate the current swing with the active layer
R3DISASSOCIATESWING	Remove the swing association from the active layer
R3LISTSWINGS	List all stored swing values and their layer associations

R3ENTERSWING

Prompts for a swing value at the command line and sets it as the active swing. Useful when you already know the swing value and don't need to open the form.

R3TOGGLESWINGS

Toggles swings on or off without opening the form. Equivalent to checking/unchecking the Enable Swings checkbox in R3SWING.

R3ASSOCIATESWING

Associates the current swing value with the active layer (or all layers in the active survey plan if layers were created with R3PL). Equivalent to clicking the blue Associate Swing button in R3SWING.

R3DISASSOCIATESWING

Removes the swing association from the active layer (or all layers in the active survey plan). Equivalent to clicking the red Disassociate Swing button in R3SWING.

R3LISTSWINGS

Lists all swing values currently stored in the drawing and which layers they are associated with. Output is written to the command line.

Notes

• When a swing is active, R3TRAV displays a warning at startup
• Swings only affect bearing input and display — entities already in the drawing are not changed
• If a swing is associated with a survey plan layer, changing to that layer automatically sets the swing
